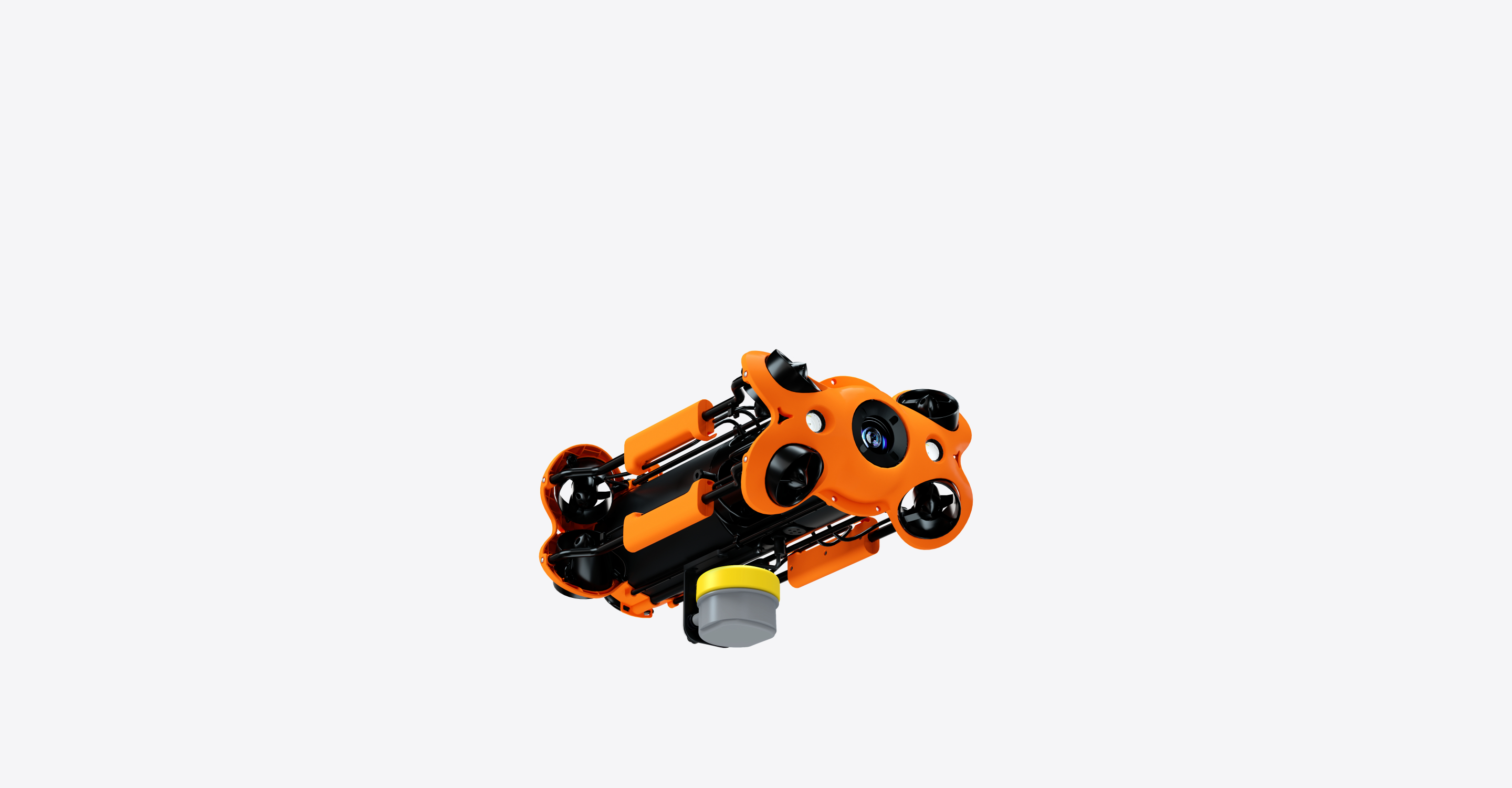

CHASING Distance Lock Sonar is specially designed for CHASING ROVs. It enables the ROV to achieve lock-distance inspection and automatic collision prevention, making various inspections more accurate and efficient.
Lock the Distance in Four Directions Separately

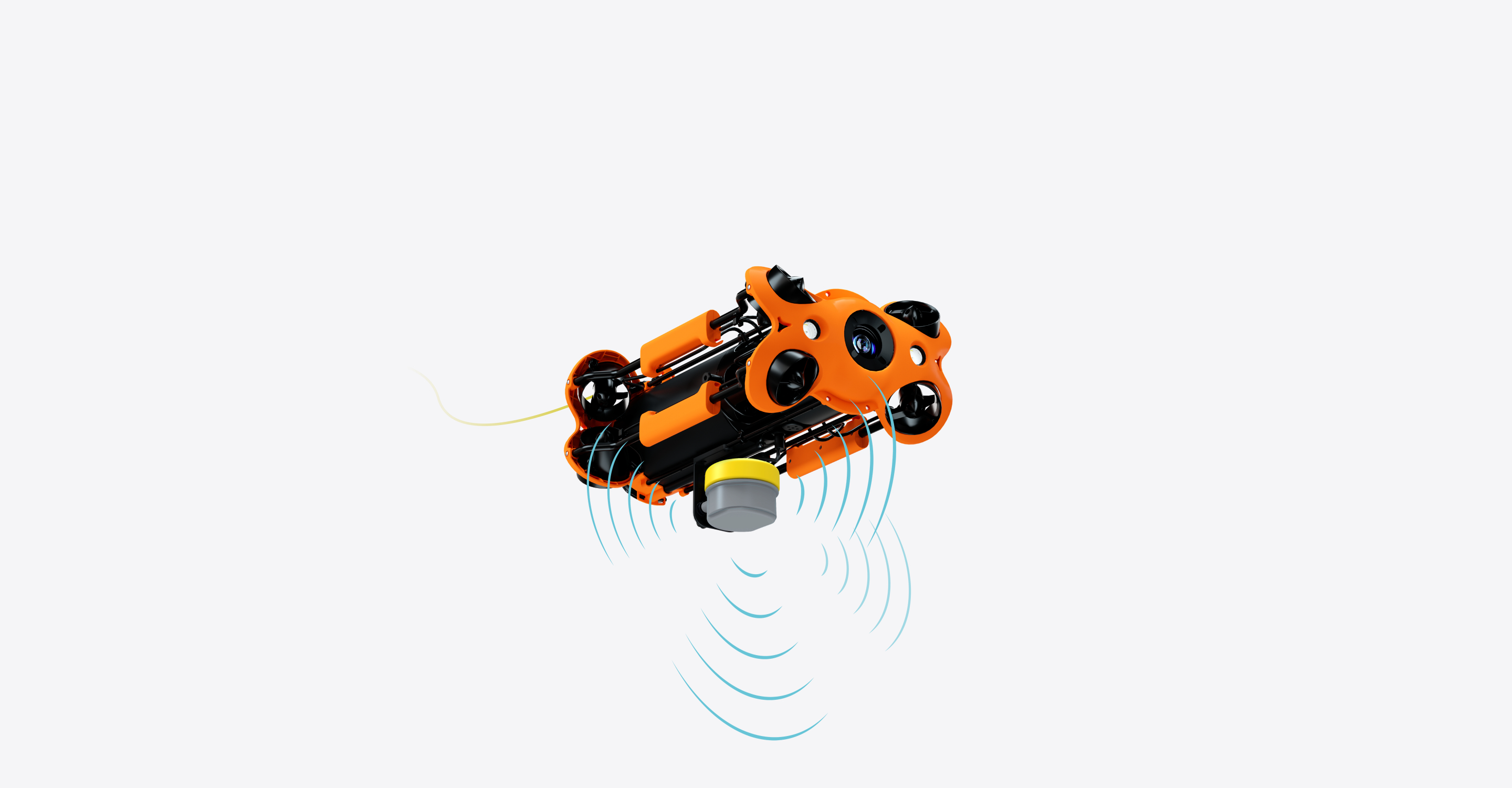

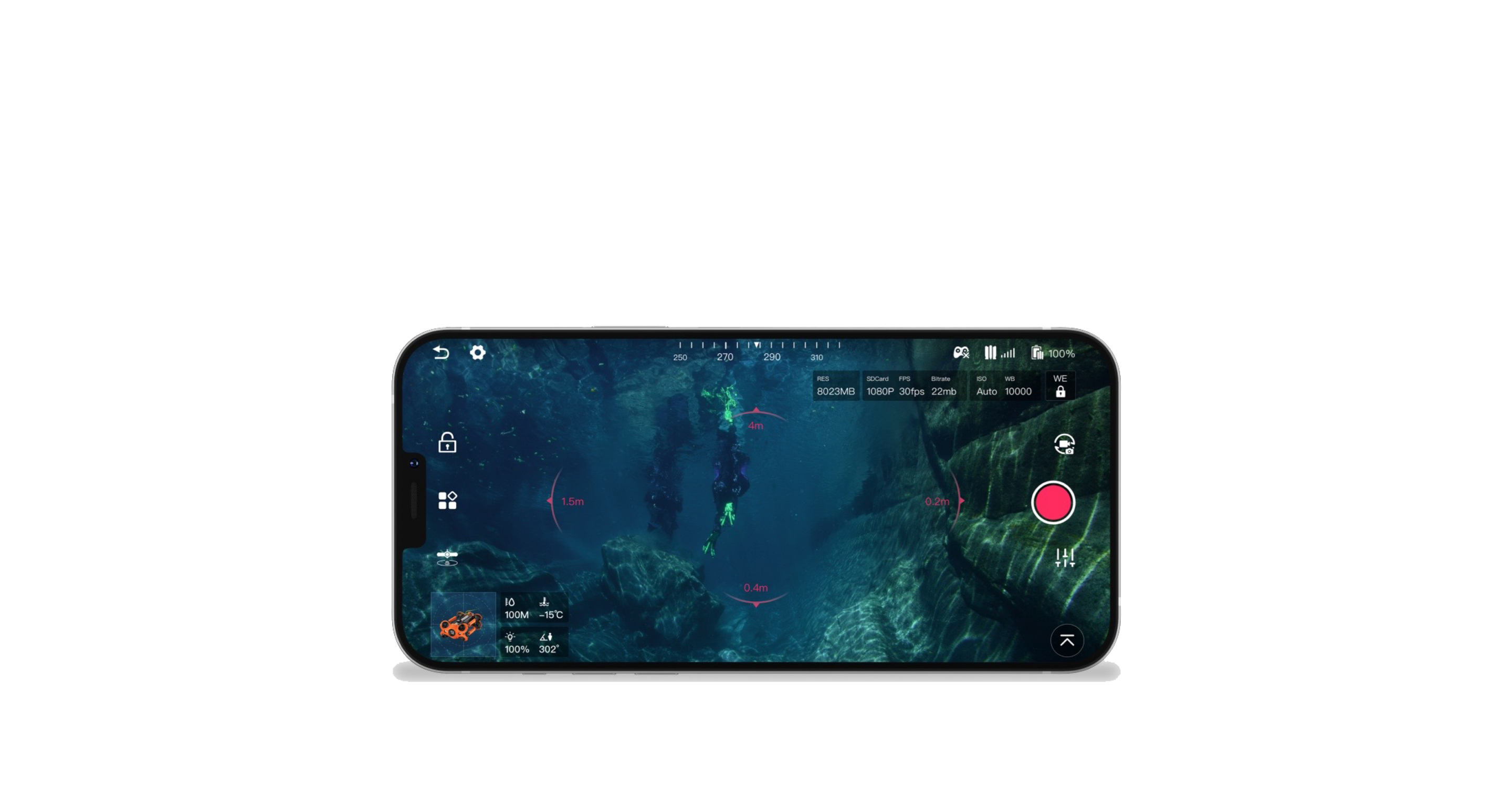

The sonar can automatically calculate the distance between it and the obstacles in the front, left, right, and bottom of the ROV. After setting the distance to the obstacles on the App, ROV can perform automatic lock-distance inspection and automatic collision avoidance.
Efficient Automatic Inspection
In the lock-distance mode, the ROV can automatically inspect from top to bottom around the fishing nets or any column-shaped facilities, thereby reducing the difficulty of underwater operations and making various inspections more accurate and efficient.
Specifications
Application
Underwater collision avoidance and Underwater fixed range
Range
Range
Blind Spot
Less than 20 cm
Measurement Accuracy
±25mm
Resolution
1 mm
Launch Angle
13° ± 2°, 26° between axis-1 and axis-2
Power Supply
10.8 VDC - 26.4 VDC (measurement range will vary depending on voltage)
Storage Temperature
-20 ℃ - 60 ℃ (non-frozen environment)
Probe Installation
Fixed installation
Protection Level
IP68
Sonar Installation Base (default)
64 × 64.8 × 79 mm
Sonar Installation Base (optional)
64 × 64.8 × 153 mm
Sonar Installation Base Weight (default)
54g
Sonar Installation Base Weight (optional)
108g
Maximum Diving Depth
150 m
Size of Distance Lock Sonar
Upper cover: 81.3 × 30mm, Housing: 79.3 × 55.9mm
Weight of Distance Lock Sonar
286 ± 5 g
