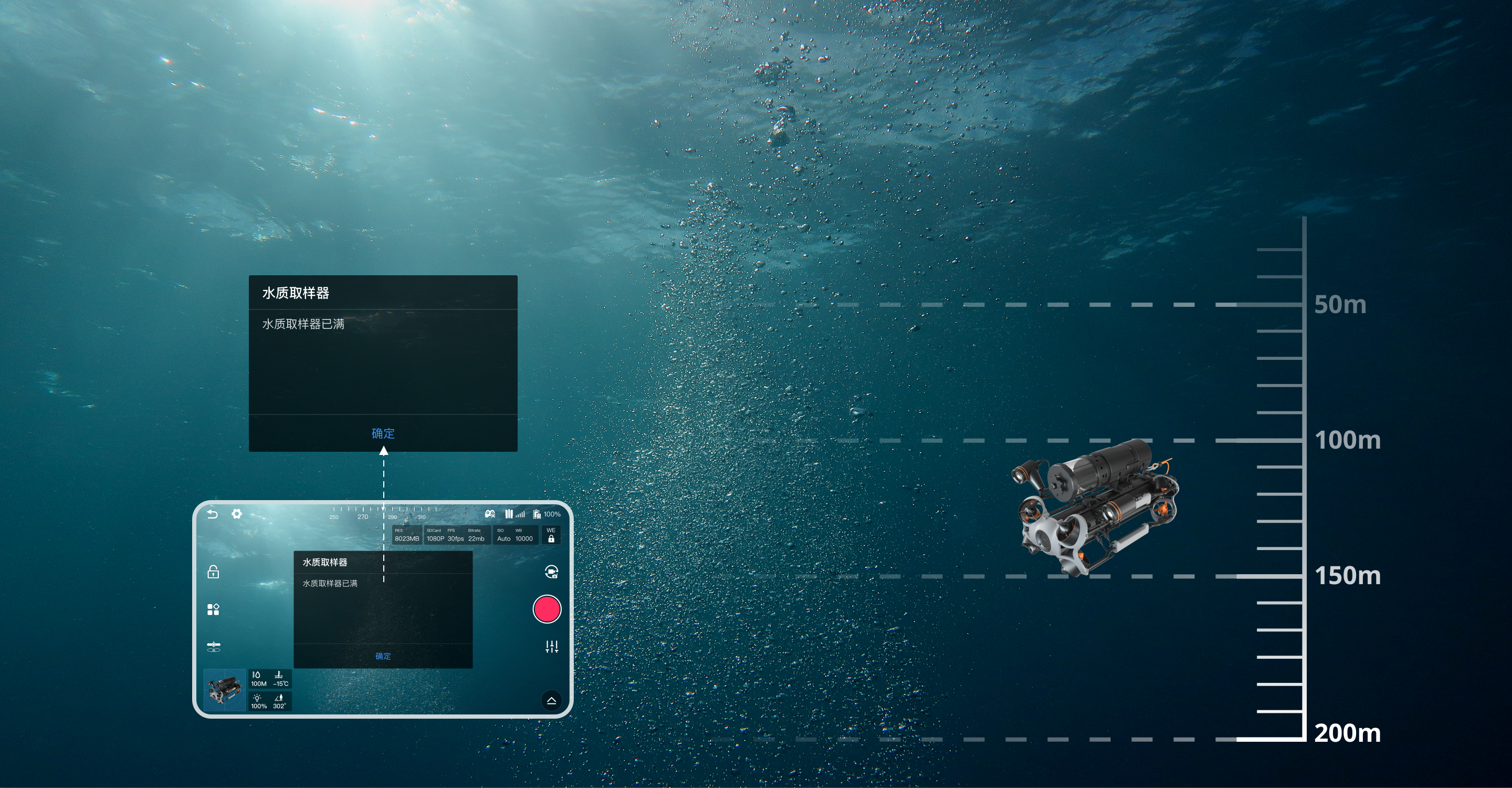

Stratified Spot Sampling in 0-200m Water Depth
ROV, equipped with water sampler, is able to achieve precise hovering at a fixed point and stratified spot sampling within the water depth range of 0- 200m in the target waters, so as to provide precise samples.
500ml of Water Sampled at Once with High Sampling Efficiency

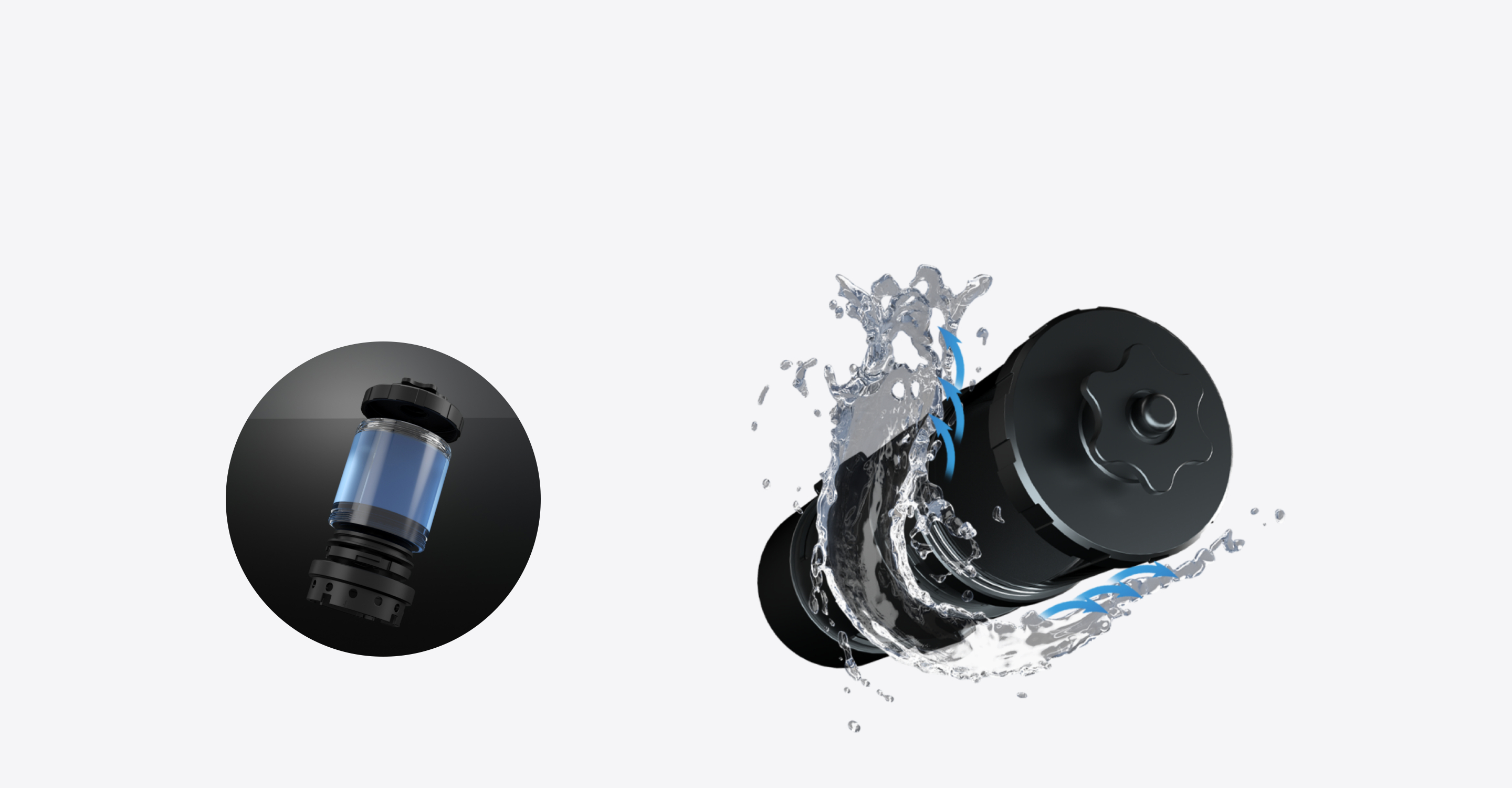

The CHASING water sampler can sample 500ml within 8 seconds by means of motor suction after arriving at the sampling point, which improvses the efficiency of sample acquisition and detection.

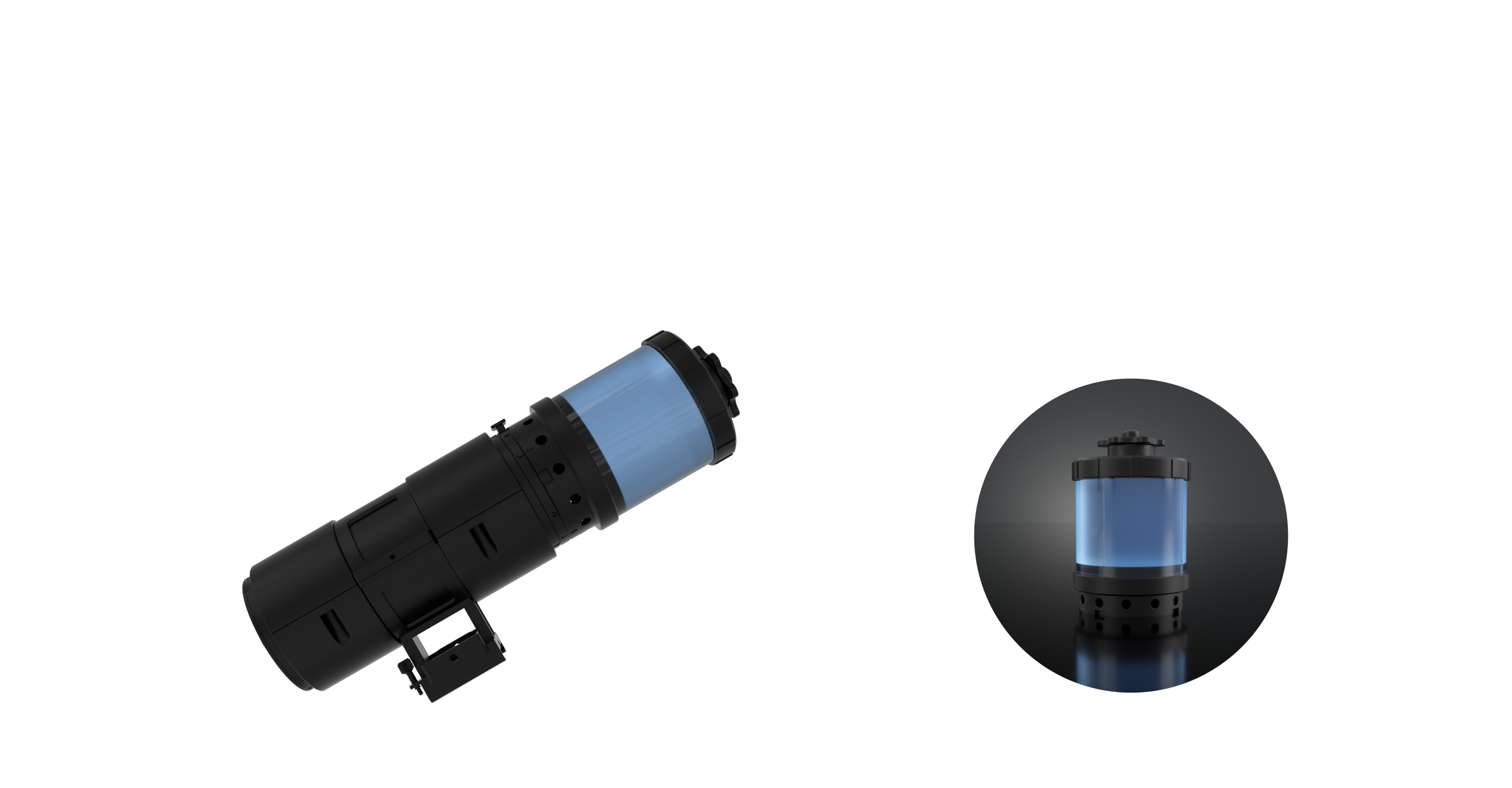

Super Sealing for Sample Protection
After thousands of tests, the CHASING water sampler achieves no water leakage during operation, fully ensuring the safety of samples in the target waters and the accuracy of the detection report.

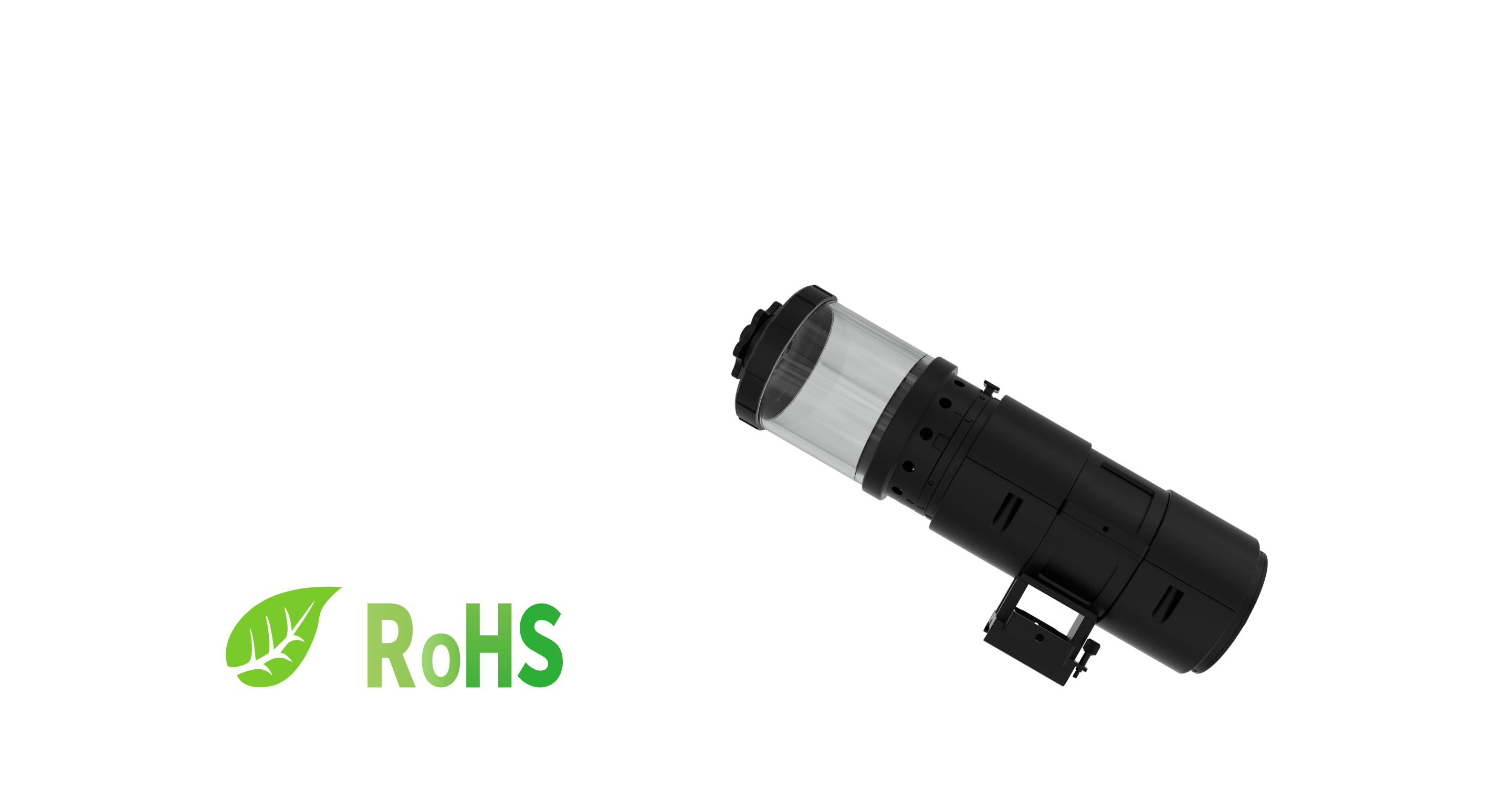

Eco-Friendly Materials Certified by Multiple Countries
The CHASING water sampler is mainly made of 6061 aluminium alloy, POM and PMMA, which has obtained ROHS certification and does not cause any envirionmental pollution to the sampled waters.

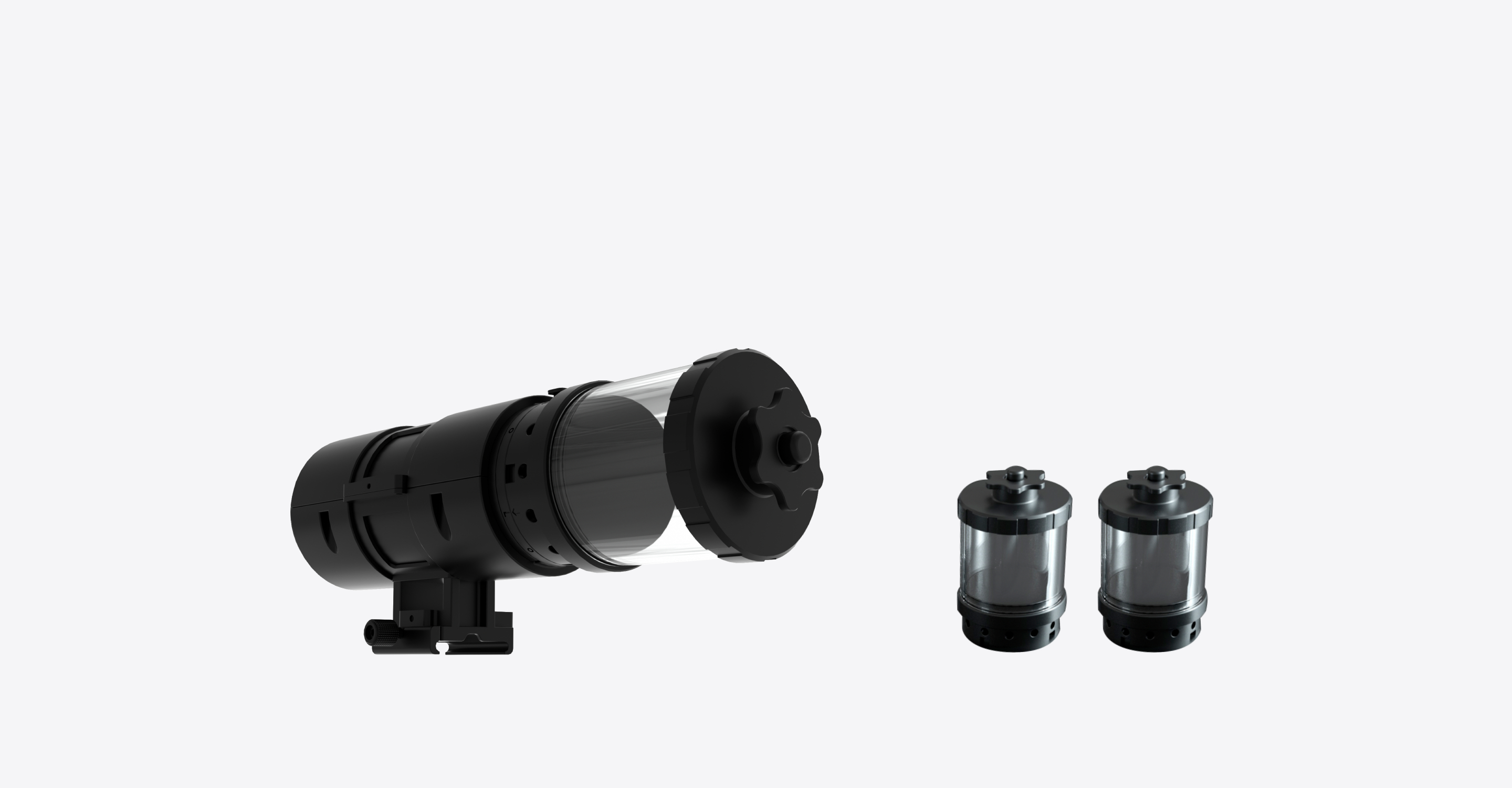

Replaceable Sampling Bottle, Flexible and Easy to use
After completing the water intake, the spare sampling bottle can be quickly replaced to start the next sampling. Multiple bottles of sampling can save time and energy, avoid residue attachment and ensure the sample detection accuracy to the maximum extent.
Specifications
Dimension
φ106 x 375 mm
Air weight
2.2kg
Pressure withstand depth
200m
Water sampling capacity
500ml
Operating voltage
DC 24V
Operating temperature
-10℃ - 45℃
What’s in the Box

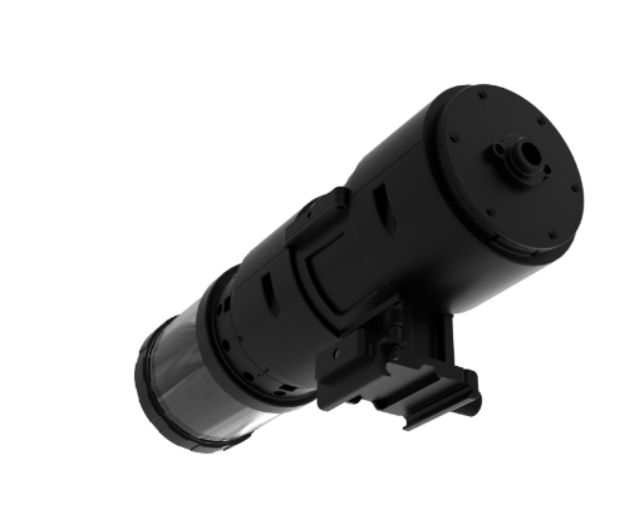

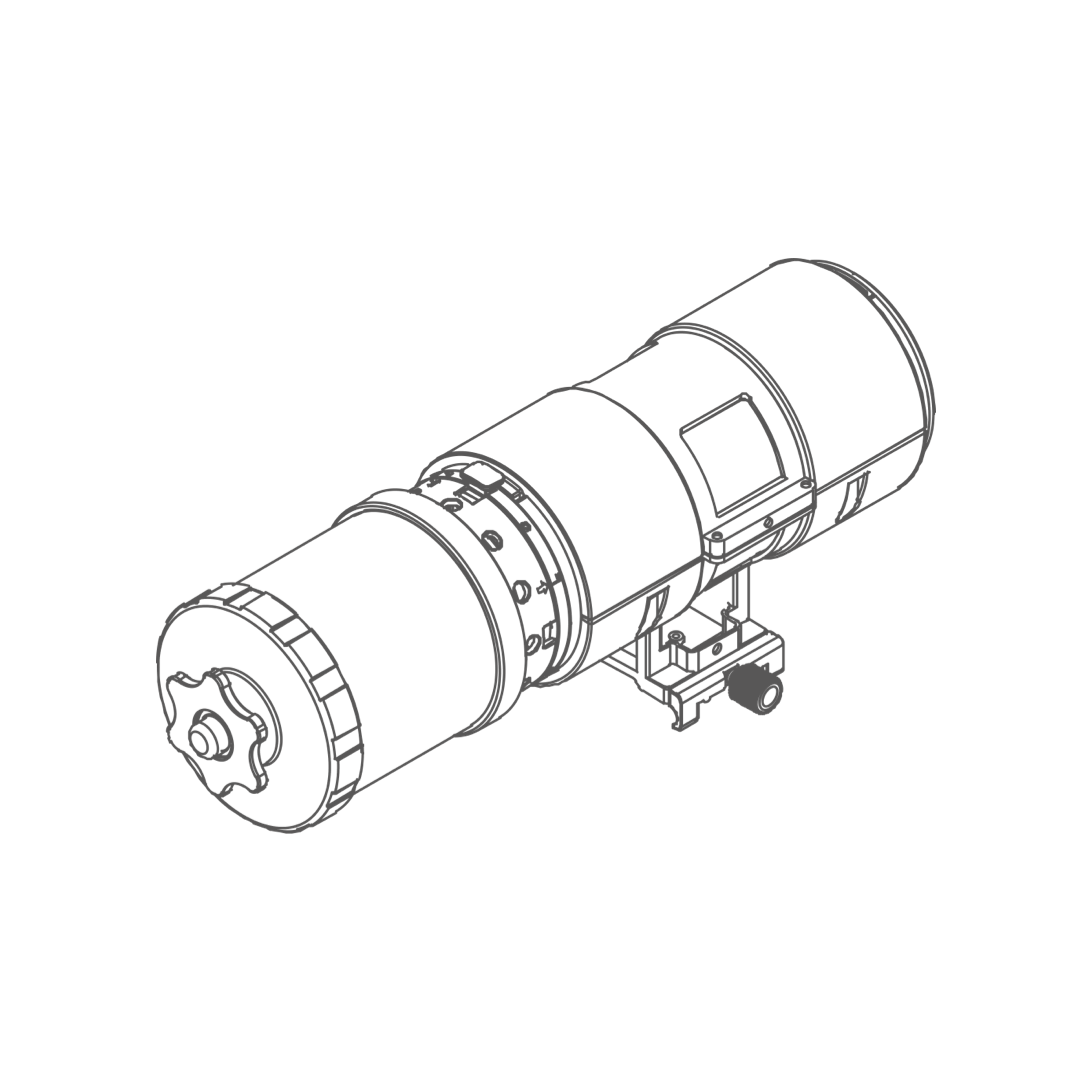

Water sampler
×1

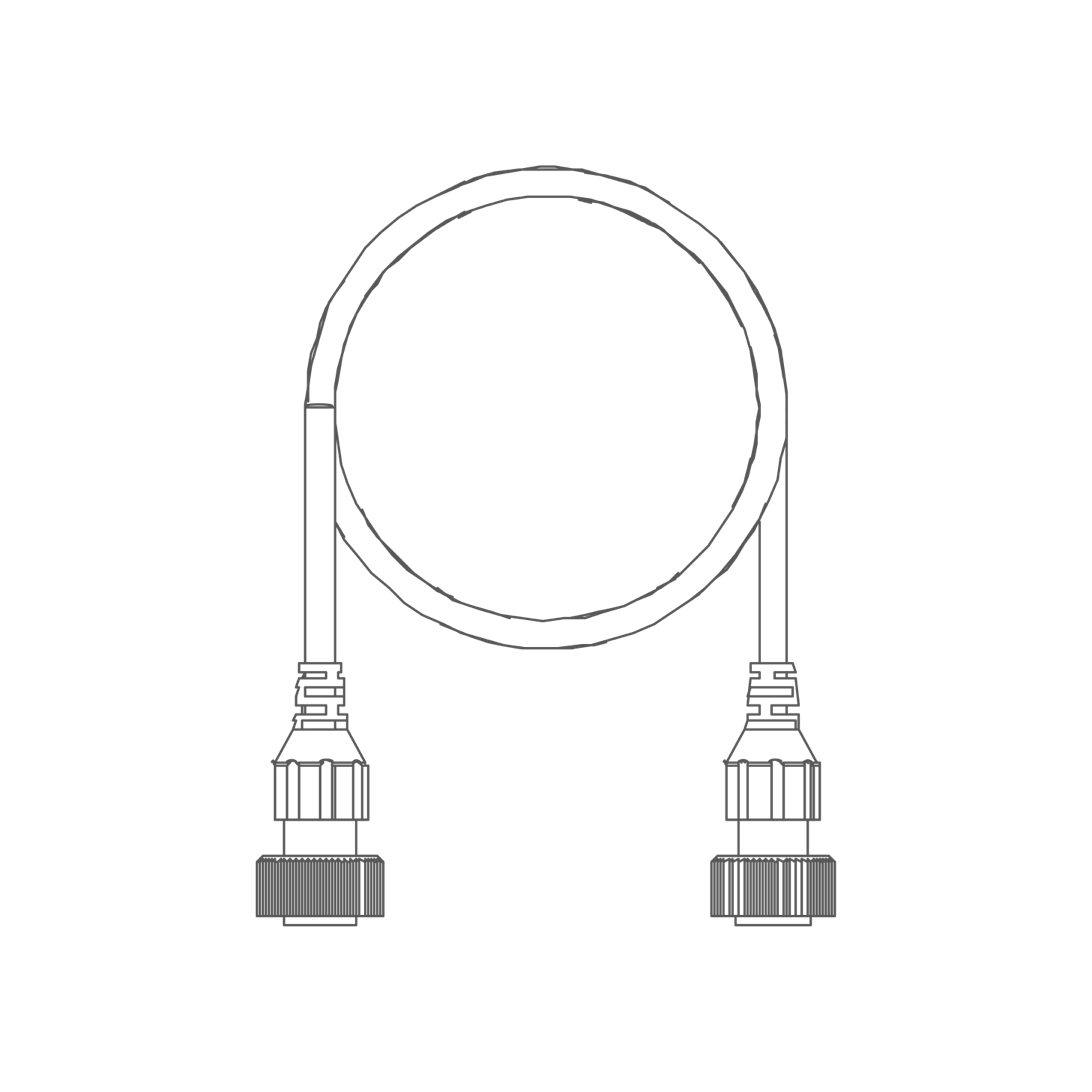

Connection cable
×1

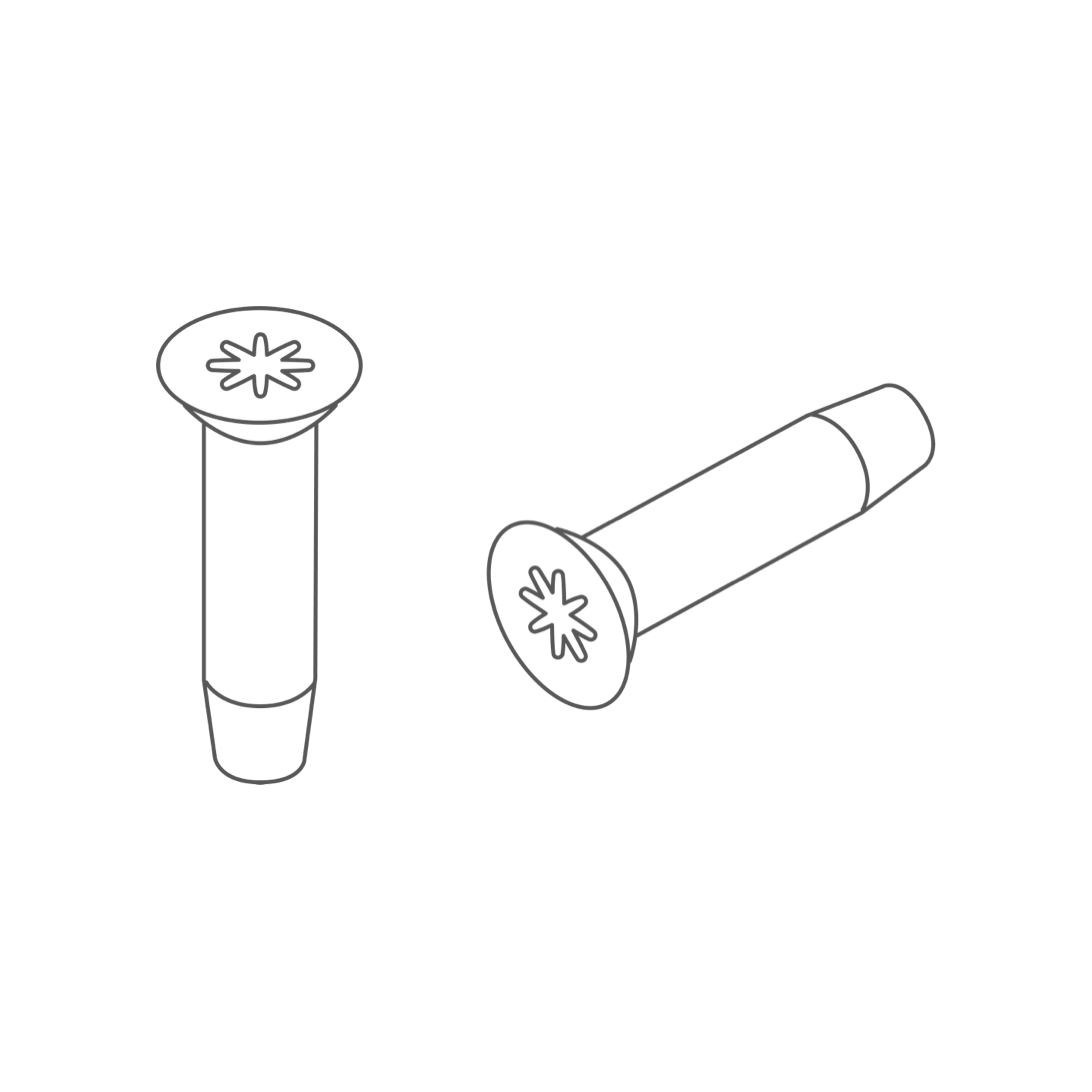

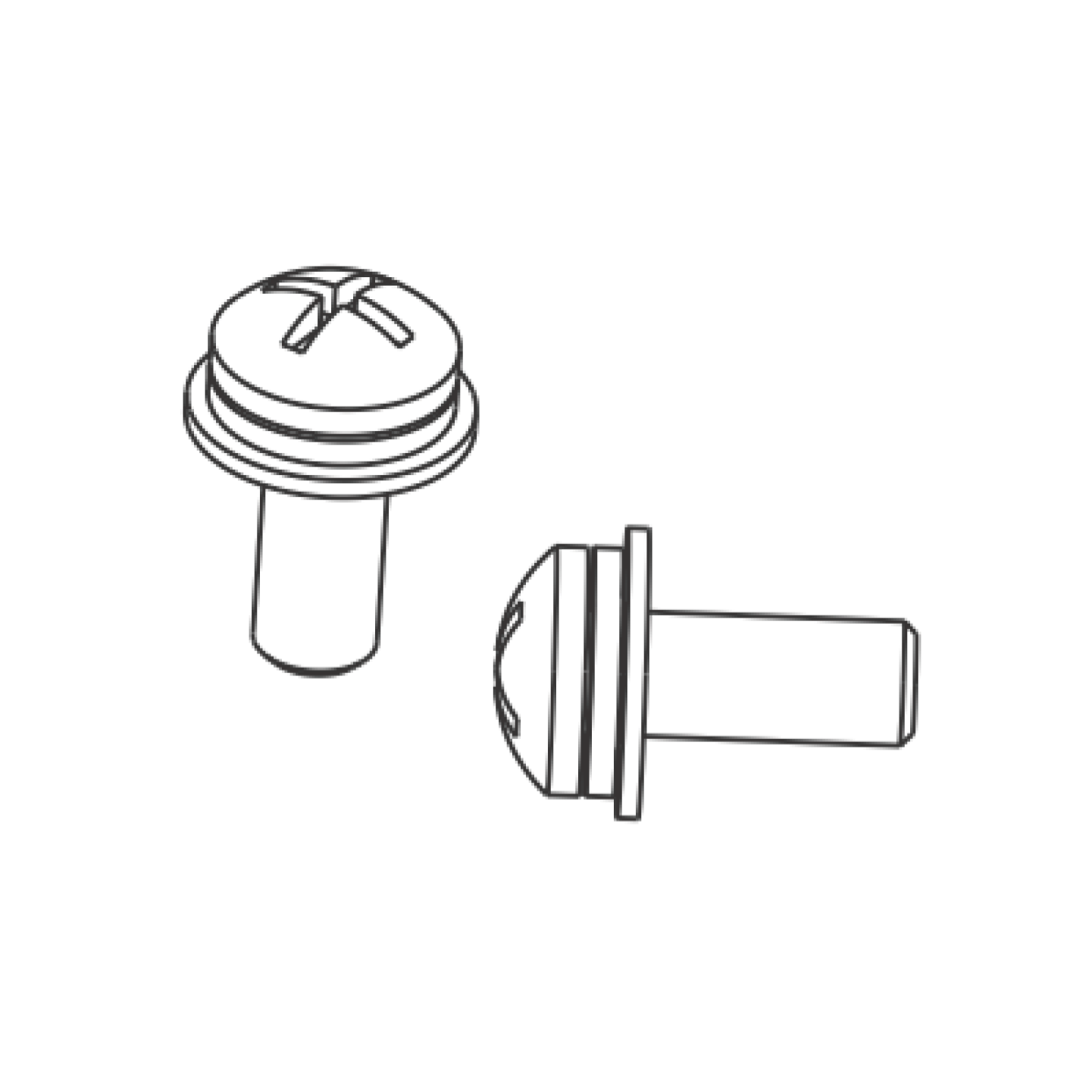

M3 screw
×4
M4 screw
×4
Datagram
×1
